Bilstein 24-197649 - Shock Absorber

Bilstein 24-197649 - Shock Absorber
Actual Product may vary from pictures due to Vehicle Fitment.
Zoom image

Bilstein 24-197649 - Shock Absorber

Part No: 24-197649
In Stock Arrives: Jun 5 - 11
  • $176.00 & FREE Shipping
List: $235.00

Starting at $XX/mo with Affirm. Prequalify now

Bilstein 24-197649 - Shock Absorber

BBGL-24-197649
In Stock Arrives: Jun 5 - 11
  • $176.00 & FREE Shipping
List: $235.00

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific
  • Adjustable spring seat offers 0-2.75in of lift, depending on the application
  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
Check All Vehicles this Part Fits

Product details

 Description

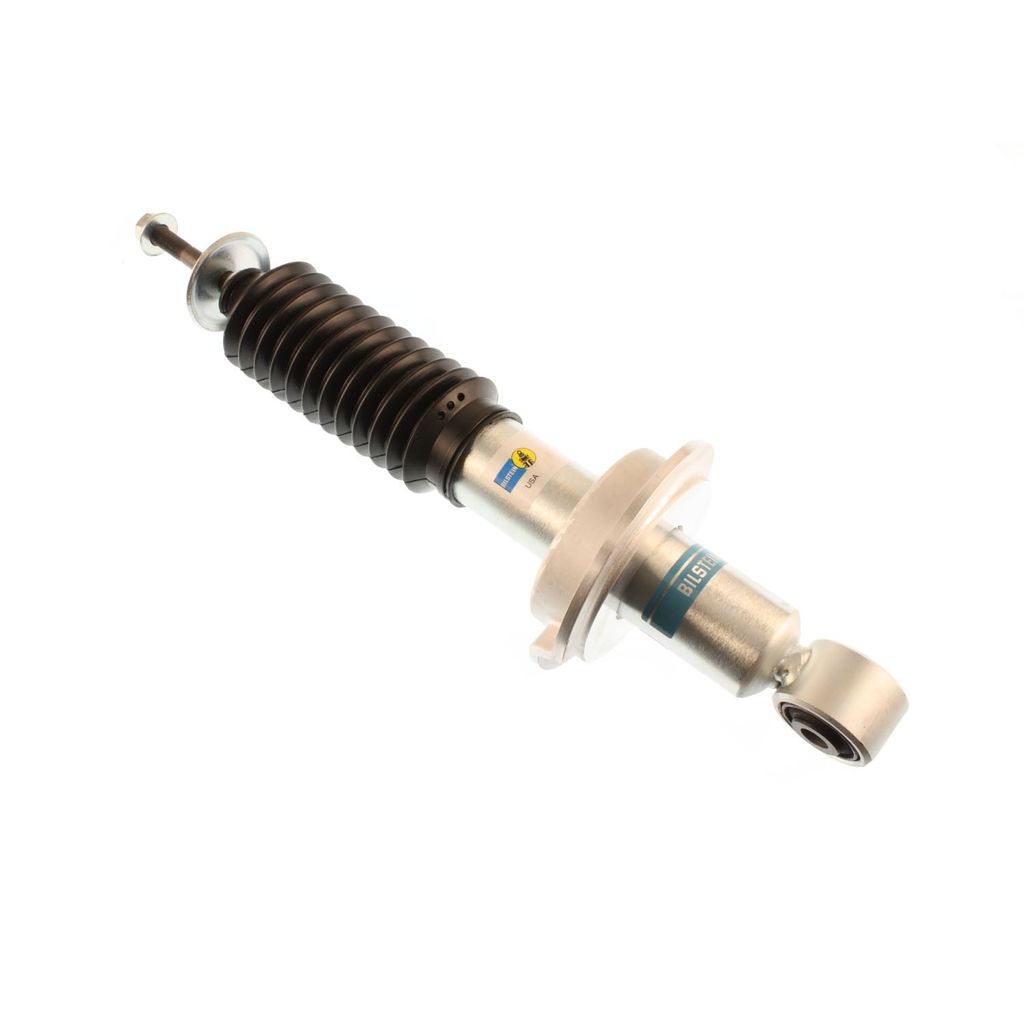

46mm Monotube Shock Absorber
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

 Specifications

Package
Attributes
  • Driving Qualifiers
    Performance Street, Off Road
  • Budget
    Low, Medium
  • Handling Characteristic
    Performance
  • Springs Included
    No
  • Ride Control/Adjustability
    Non- Adjustable
  • Ride Height Adjustable?
    No
  • Design
    Mono Tube
Details
  • Part Name
    Shock Absorber
  • Adjustable Damping
    Non-Adjustable
  • Body Design
    Snap Ring Grooved Body (Coilover)
  • Body Diameter (ID)
    46mm
  • Boot Included
    Black Bellows
  • Collapsed Length (IN)
    11.19
  • Collapsed Length (MM)
    284.2
  • Extended Length (IN)
    15.43
  • Extended Length (MM)
    392
  • Finish
    Zinc Plated
  • Internal Design
    Monotube
  • Lower Mount Type
    Eye 14.2mm
  • PartType
    Shocks / Struts
  • Reservoir
    No
  • Segment
    Light Truck
  • Series
    B8 5100 (Ride Height Adjustable)
  • Spring Max Travel (IN)
    4.24
  • Spring Seat Included
    Yes
  • Title
    Bilstein Shock Absorbers
  • Upper Mount Type
    Stem
Manufacturer description
  • Manufacturer Label
    B8 5100 (Ride Height Adjustable)

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2015, Nissan Armada Platinum Front, Qty - 2, Provides 0-2" Front Lift
2015, Nissan Armada SL Front, Qty - 2, Provides 0-2" Front Lift
2015, Nissan Armada SV Front, Qty - 2, Provides 0-2" Front Lift
2015, Nissan Titan PRO-4X Front, Qty - 2, Provides 0-2" Front Lift
2015, Nissan Titan S Front, Qty - 2, Provides 0-2" Front Lift
2015, Nissan Titan SL Front, Qty - 2, Provides 0-2" Front Lift
2015, Nissan Titan SV Front, Qty - 2, Provides 0-2" Front Lift
2014, Nissan Armada Platinum Front, Qty - 2, Provides 0-2" Front Lift
2014, Nissan Armada SL Front, Qty - 2, Provides 0-2" Front Lift
2014, Nissan Armada SV Front, Qty - 2, Provides 0-2" Front Lift
2014, Nissan Titan PRO-4X Front, Qty - 2, Provides 0-2" Front Lift
2014, Nissan Titan S Front, Qty - 2, Provides 0-2" Front Lift
2014, Nissan Titan SL Front, Qty - 2, Provides 0-2" Front Lift
2014, Nissan Titan SV Front, Qty - 2, Provides 0-2" Front Lift
2013, Nissan Armada Platinum Front, Qty - 2, Provides 0-2" Front Lift
2013, Nissan Armada SL Front, Qty - 2, Provides 0-2" Front Lift
2013, Nissan Armada SV Front, Qty - 2, Provides 0-2" Front Lift
2013, Nissan Titan PRO-4X Front, Qty - 2, Provides 0-2" Front Lift
2013, Nissan Titan S Front, Qty - 2, Provides 0-2" Front Lift
2013, Nissan Titan SL Front, Qty - 2, Provides 0-2" Front Lift
2013, Nissan Titan SV Front, Qty - 2, Provides 0-2" Front Lift
2012, Nissan Armada Platinum Front, Qty - 2, Provides 0-2" Front Lift
2012, Nissan Armada SL Front, Qty - 2, Provides 0-2" Front Lift
2012, Nissan Armada SV Front, Qty - 2, Provides 0-2" Front Lift
2012, Nissan Titan PRO-4X Front, Qty - 2, Provides 0-2" Front Lift
2012, Nissan Titan S Front, Qty - 2, Provides 0-2" Front Lift
2012, Nissan Titan SL Front, Qty - 2, Provides 0-2" Front Lift
2012, Nissan Titan SV Front, Qty - 2, Provides 0-2" Front Lift
2011, Nissan Armada Platinum Front, Qty - 2, Provides 0-2" Front Lift
2011, Nissan Armada SL Front, Qty - 2, Provides 0-2" Front Lift
2011, Nissan Armada SV Front, Qty - 2, Provides 0-2" Front Lift
2011, Nissan Titan PRO-4X Front, Qty - 2, Provides 0-2" Front Lift
2011, Nissan Titan S Front, Qty - 2, Provides 0-2" Front Lift
2011, Nissan Titan SL Front, Qty - 2, Provides 0-2" Front Lift
2011, Nissan Titan SV Front, Qty - 2, Provides 0-2" Front Lift
2010, Infiniti QX56 Base Front, Qty - 2, Provides 0-2" Front Lift
2010, Nissan Armada Platinum Front, Qty - 2, Provides 0-2" Front Lift
2010, Nissan Armada SE Front, Qty - 2, Provides 0-2" Front Lift
2010, Nissan Armada Titanium Front, Qty - 2, Provides 0-2" Front Lift
2010, Nissan Titan LE Front, Qty - 2, Provides 0-2" Front Lift
2010, Nissan Titan PRO-4X Front, Qty - 2, Provides 0-2" Front Lift
2010, Nissan Titan SE Front, Qty - 2, Provides 0-2" Front Lift
2010, Nissan Titan XE Front, Qty - 2, Provides 0-2" Front Lift
2009, Infiniti QX56 Base Front, Qty - 2, Provides 0-2" Front Lift
2009, Nissan Armada LE Front, Qty - 2, Provides 0-2" Front Lift
2009, Nissan Armada SE Front, Qty - 2, Provides 0-2" Front Lift
2009, Nissan Titan LE Front, Qty - 2, Provides 0-2" Front Lift
2009, Nissan Titan PRO-4X Front, Qty - 2, Provides 0-2" Front Lift
2009, Nissan Titan SE Front, Qty - 2, Provides 0-2" Front Lift
2009, Nissan Titan XE Front, Qty - 2, Provides 0-2" Front Lift
2008, Infiniti QX56 Base Front, Qty - 2, Provides 0-2" Front Lift
2008, Nissan Armada LE Front, Qty - 2, Provides 0-2" Front Lift
2008, Nissan Armada SE Front, Qty - 2, Provides 0-2" Front Lift
2008, Nissan Titan LE Front, Qty - 2, Provides 0-2" Front Lift
2008, Nissan Titan PRO-4X Front, Qty - 2, Provides 0-2" Front Lift
2008, Nissan Titan SE Front, Qty - 2, Provides 0-2" Front Lift
2008, Nissan Titan XE Front, Qty - 2, Provides 0-2" Front Lift
2007, Infiniti QX56 Base Front, Qty - 2, Provides 0-2" Front Lift
2007, Nissan Armada LE Front, Qty - 2, Provides 0-2" Front Lift
2007, Nissan Armada SE Front, Qty - 2, Provides 0-2" Front Lift
2007, Nissan Titan LE Front, Qty - 2, Provides 0-2" Front Lift
2007, Nissan Titan SE Front, Qty - 2, Provides 0-2" Front Lift
2007, Nissan Titan XE Front, Qty - 2, Provides 0-2" Front Lift
2006, Infiniti QX56 Base Front, Qty - 2, Provides 0-2" Front Lift
2006, Nissan Armada LE Front, Qty - 2, Provides 0-2" Front Lift
2006, Nissan Armada SE Front, Qty - 2, Provides 0-2" Front Lift
2006, Nissan Armada SE Off-Road Front, Qty - 2, Provides 0-2" Front Lift
2006, Nissan Titan LE Front, Qty - 2, Provides 0-2" Front Lift
2006, Nissan Titan SE Front, Qty - 2, Provides 0-2" Front Lift
2006, Nissan Titan XE Front, Qty - 2, Provides 0-2" Front Lift
2005, Infiniti QX56 Base Front, Qty - 2, Provides 0-2" Front Lift
2005, Nissan Armada LE Front, Qty - 2, Provides 0-2" Front Lift
2005, Nissan Armada SE Front, Qty - 2, Provides 0-2" Front Lift
2005, Nissan Armada SE Off-Road Front, Qty - 2, Provides 0-2" Front Lift
2005, Nissan Titan LE Front, Qty - 2, Provides 0-2" Front Lift
2005, Nissan Titan SE Front, Qty - 2, Provides 0-2" Front Lift
2005, Nissan Titan XE Front, Qty - 2, Provides 0-2" Front Lift
2004, Infiniti QX56 Base Front, Qty - 2, Provides 0-2" Front Lift
2004, Nissan Pathfinder Armada LE Front, Qty - 2, Provides 0-2" Front Lift
2004, Nissan Pathfinder Armada SE Front, Qty - 2, Provides 0-2" Front Lift
2004, Nissan Titan LE Front, Qty - 2, Provides 0-2" Front Lift
2004, Nissan Titan SE Front, Qty - 2, Provides 0-2" Front Lift
2004, Nissan Titan XE Front, Qty - 2, Provides 0-2" Front Lift
