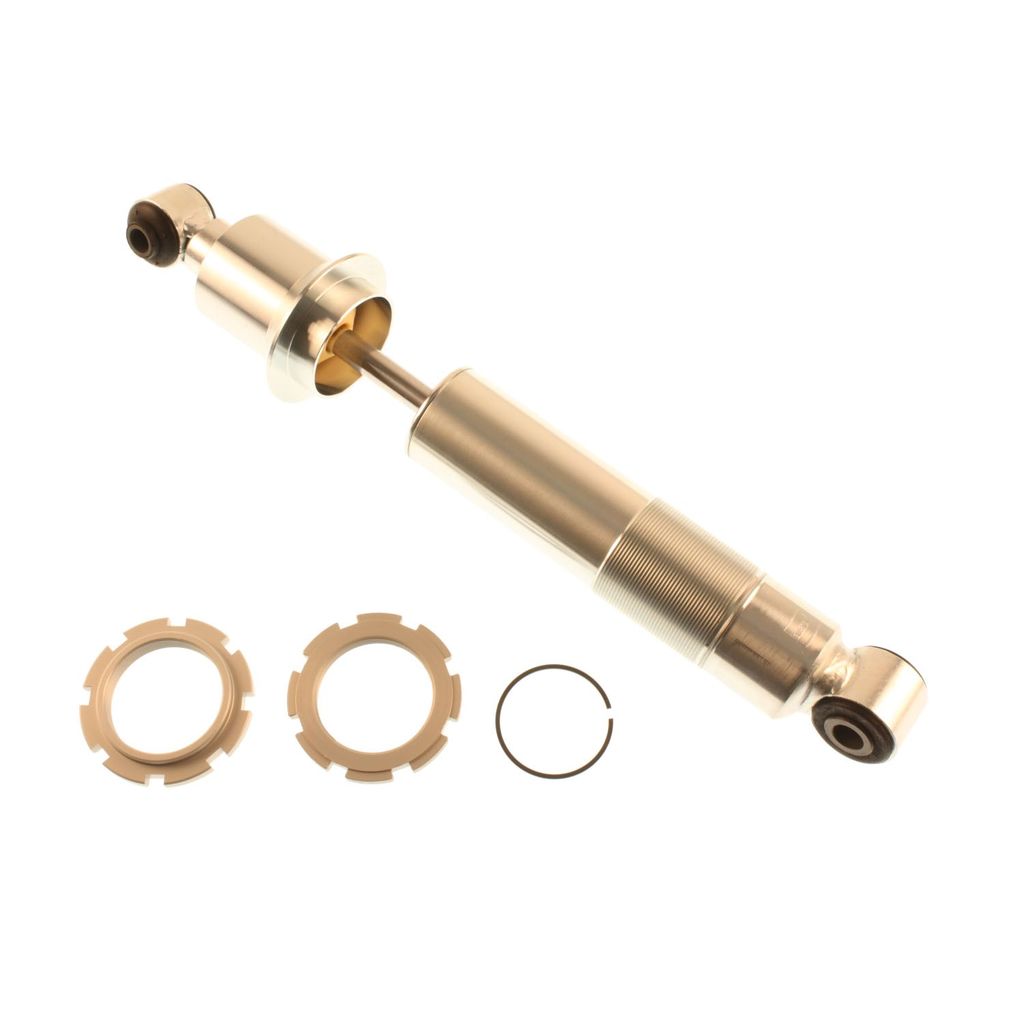

Bilstein 24-176422 - Shock Absorber

Previous image
Bilstein 24-176422 - Shock Absorber
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Bilstein 24-176422 - Shock Absorber

Part No: 24-176422

Bilstein 24-176422 - Shock Absorber

BBGL-24-176422
Vehicle Specific
  • Available in steel and aluminum bodies
  • Monotube design ensures consistent, fade-free performance in all conditions
  • Larger working piston with deflective disc valving
Check All Vehicles this Part Fits

Product details

 Description

46mm Monotube Shock Absorber
Bilstein Motorsports dampers are designed as a direct fit solution for a variety of motorsports applications. Each damper features monotube technology with proprietary spring steel valve discs tuned specifically to each application for superior on-track handling and control. Bilstein Motorsports dampers are ideal for racers requiring a direct fit solution with true race-proven performance.

 Specifications

Package
Attributes
  • Driving Qualifiers
    Racing Only
  • Budget
    High
  • Handling Characteristic
    Firm
  • Springs Included
    No
  • Ride Control/Adjustability
    Non- Adjustable
  • Ride Height Adjustable?
    Yes
  • Design
    Mono Tube
Details
  • Part Name
    Shock Absorber
  • Adjustable Damping
    Non-Adjustable
  • Body Design
    Threaded Body (Coilover)
  • Body Diameter (ID)
    46mm
  • Body Material
    Steel
  • Boot Included
    No
  • Collapsed Length (IN)
    10.85
  • Collapsed Length (MM)
    275.5
  • Compression @0.52m/s
    2180
  • Extended Length (IN)
    15.49
  • Extended Length (MM)
    393.5
  • Finish
    Zinc Plated
  • Internal Design
    Monotube
  • Lower Mount Type
    Eye 14.1mm
  • PartType
    Shocks / Struts
  • Piston Type
    Digressive
  • Position
    Rear
  • Rebound @0.52m/s
    5650
  • Segment
    Motorsports
  • Series
    Motorsports
  • Spring Hardware
    N/A
  • Spring Max Travel (IN)
    4.64
  • Spring Seat Included
    Yes
  • Title
    Bilstein Shock Absorbers
  • Upper Mount Type
    Eye 12mm
  • Valving Identifier
    N/A
Manufacturer description
  • Manufacturer Label
    Motorsports

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
1991, Porsche 944 S2 Rear, Qty - 2, Cup Model
1990, Porsche 944 S2 Rear, Qty - 2, Cup Model
1989, Porsche 944 S2 Rear, Qty - 2, Cup Model
