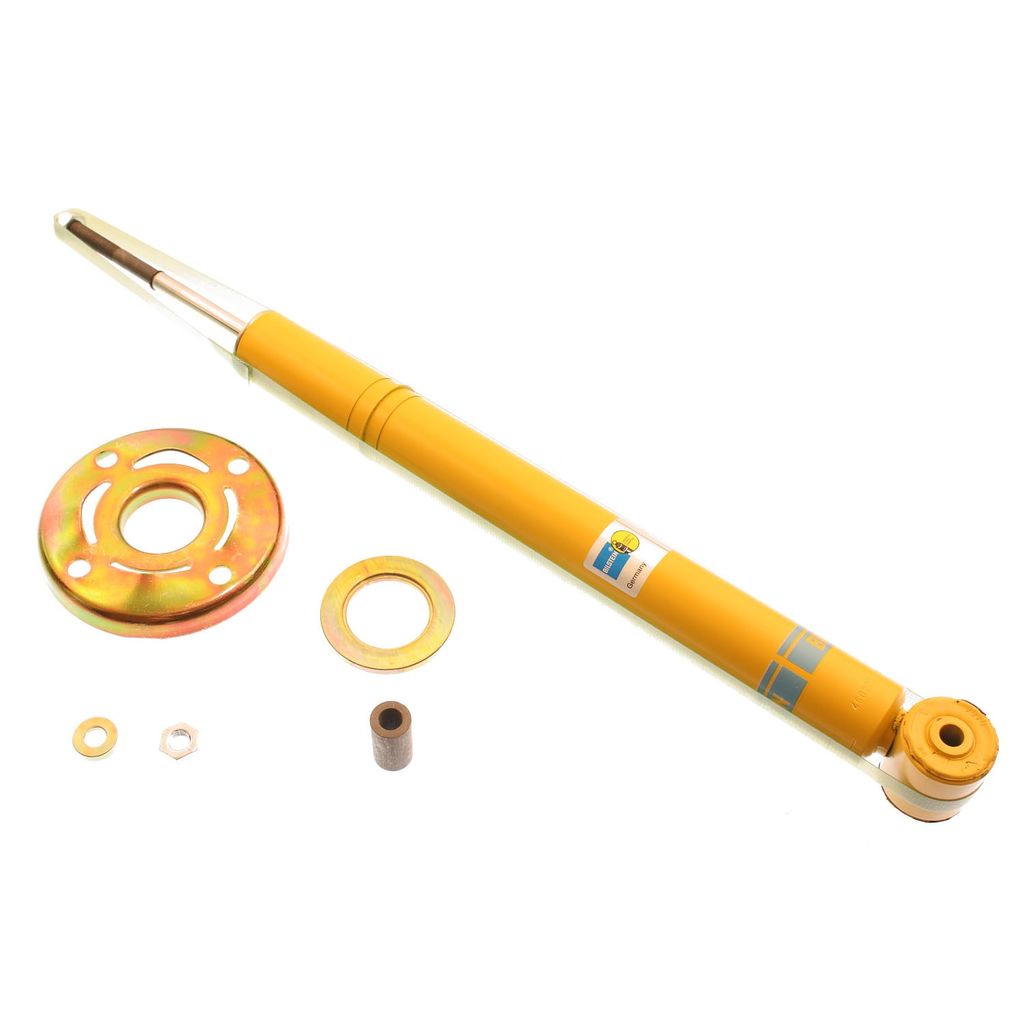

Bilstein 24-006552 - Shock Absorber

Previous image
Bilstein 24-006552 - Shock Absorber
Next image
Zoom image

Bilstein 24-006552 - Shock Absorber

Part No: 24-006552
Not in Stock

Please call 888-257-7149 to check future availability

  • $180.00 & FREE Shipping

Starting at $XX/mo with Affirm. Prequalify now

Bilstein 24-006552 - Shock Absorber

BBGL-24-006552
Not in Stock

Please call 888-257-7149 to check future availability

  • $180.00 & FREE Shipping

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific

Select your Vehicle

  • Monotube gas pressure shock absorber technology prevents foaming and emulsion
  • Ideal for off-road racing and lifted trucks and SUVs
  • Provide better handling and consistent performance
  • Remote reservoir for better heat dissipation and lasting durability
  • Undergo road testing to ensure safety, comfort, and performance

Product details


 Description

36mm Monotube Shock Absorber
Most renowned drivers in the world choose the Bilstein Motorsports Shock Absorbers and Struts for their motorsport application. That’s no wonder—Bilstein’s Motorsports shocks are the true monotube high-pressure gas shocks: no foam cells, no emulsion, just consistent, reliable performance. Whether you’re off-road racing, on the circle track, drag racing, or driving a lifted truck or SUV, these shocks are proven to deliver a superior blend of improved performance and maximum comfort.
Bilstein Motorsports dampers are designed as a direct fit solution for a variety of motorsports applications. Each damper features monotube technology with proprietary spring steel valve discs tuned specifically to each application for superior on-track handling and control. Bilstein Motorsports dampers are ideal for racers requiring a direct fit solution with true race-proven performance.
Bilstein introduced the Motorsports shocks and struts more than 50 years ago, and since then, this has been the brand of choice of many winning racers around the globe. Nothing beats the greater damping power that Bilstein’s monotube technology offers. With a larger surface area on the piston, racers can expect only the most consistent performance and better handling all throughout the ride. All Bilstein Motorsports shocks and struts come with a remote reservoir for greater heat dissipation and long-term durability. And they are 100% road tested to ensure safety, comfort, and performance when driving.

 Specifications

Package
Attributes
  • Driving Qualifiers
    Racing Only
  • Budget
    High
  • Handling Characteristic
    Firm
  • Springs Included
    No
  • Ride Control/Adjustability
    Non- Adjustable
  • Ride Height Adjustable?
    Yes
  • Design
    Mono Tube
Details
  • Part Name
    Shock Absorber
  • Adjustable Damping
    Non-Adjustable
  • Body Design
    Smooth Body (Non-Coilover)
  • Body Diameter (ID)
    36mm
  • Body Material
    Steel
  • Boot Included
    No
  • Collapsed Length (IN)
    16.61
  • Collapsed Length (MM)
    422.0
  • Compression @0.52m/s
    905
  • Extended Length (IN)
    24.70
  • Extended Length (MM)
    627.5
  • Finish
    Yellow Paint
  • Internal Design
    Monotube
  • Lower Mount Type
    Eye 10.2mm
  • Piston Type
    Linear
  • Position
    Rear
  • Rebound @0.52m/s
    2280
  • Series
    Motorsports
  • Spring Seat Included
    Yes
  • Title
    Bilstein Shock Absorbers
  • Upper Mount Type
    Stem
  • Valving Identifier
    N/A
Manufacturer description
  • Manufacturer Label
    Motorsports

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles


Model Engine Trim Notes
1992, Volkswagen Golf GL Rear, Qty - 2, Group N
1992, Volkswagen Golf GL Rear, Qty - 2, Group N
1992, Volkswagen Golf GTI 16-Valve Rear, Qty - 2, Group N
1992, Volkswagen Golf GTI 16-Valve Rear, Qty - 2, Group N
1992, Volkswagen Golf GTI 8-Valve Rear, Qty - 2, Group N
1992, Volkswagen Golf GTI 8-Valve Rear, Qty - 2, Group N
1991, Volkswagen Golf GL Rear, Qty - 2, Group N
1991, Volkswagen Golf GL Rear, Qty - 2, Group N
1991, Volkswagen Golf GTI 16-Valve Rear, Qty - 2, Group N
1991, Volkswagen Golf GTI 16-Valve Rear, Qty - 2, Group N
1991, Volkswagen Golf GTI 8-Valve Rear, Qty - 2, Group N
1991, Volkswagen Golf GTI 8-Valve Rear, Qty - 2, Group N
1990, Volkswagen Golf GL Rear, Qty - 2, Group N
1990, Volkswagen Golf GL Rear, Qty - 2, Group N
1990, Volkswagen Golf GTI 16-Valve Rear, Qty - 2, Group N
1990, Volkswagen Golf GTI 16-Valve Rear, Qty - 2, Group N
1990, Volkswagen Golf GTI 8-Valve Rear, Qty - 2, Group N
1990, Volkswagen Golf GTI 8-Valve Rear, Qty - 2, Group N
1989, Volkswagen Golf Base Rear, Qty - 2, Group N
1989, Volkswagen Golf Base Rear, Qty - 2, Group N
1989, Volkswagen Golf GL Rear, Qty - 2, Group N
1989, Volkswagen Golf GL Rear, Qty - 2, Group N
1989, Volkswagen Golf GTI 16-Valve Rear, Qty - 2, Group N
1989, Volkswagen Golf GTI 16-Valve Rear, Qty - 2, Group N
1988, Volkswagen Golf Base Rear, Qty - 2, Group N
1988, Volkswagen Golf Base Rear, Qty - 2, Group N
1988, Volkswagen Golf GL Rear, Qty - 2, Group N
1988, Volkswagen Golf GL Rear, Qty - 2, Group N
1988, Volkswagen Golf GT Rear, Qty - 2, Group N
1988, Volkswagen Golf GT Rear, Qty - 2, Group N
1988, Volkswagen Golf GTI 16-Valve Rear, Qty - 2, Group N
1988, Volkswagen Golf GTI 16-Valve Rear, Qty - 2, Group N
1987, Volkswagen Golf GL Rear, Qty - 2, Group N
1987, Volkswagen Golf GL Rear, Qty - 2, Group N
1987, Volkswagen Golf GT Rear, Qty - 2, Group N
1987, Volkswagen Golf GT Rear, Qty - 2, Group N
1987, Volkswagen Golf GTI Rear, Qty - 2, Group N
1987, Volkswagen Golf GTI Rear, Qty - 2, Group N
1987, Volkswagen Golf GTI 16-Valve Rear, Qty - 2, Group N
1987, Volkswagen Golf GTI 16-Valve Rear, Qty - 2, Group N
1986, Volkswagen Golf Base Rear, Qty - 2, Group N
1986, Volkswagen Golf Base Rear, Qty - 2, Group N
1986, Volkswagen Golf GTI Rear, Qty - 2, Group N
1986, Volkswagen Golf GTI Rear, Qty - 2, Group N
1985, Volkswagen Golf Base Rear, Qty - 2, Group N
1985, Volkswagen Golf Base Rear, Qty - 2, Group N
1985, Volkswagen Golf GTI Rear, Qty - 2, Group N
1985, Volkswagen Golf GTI Rear, Qty - 2, Group N
