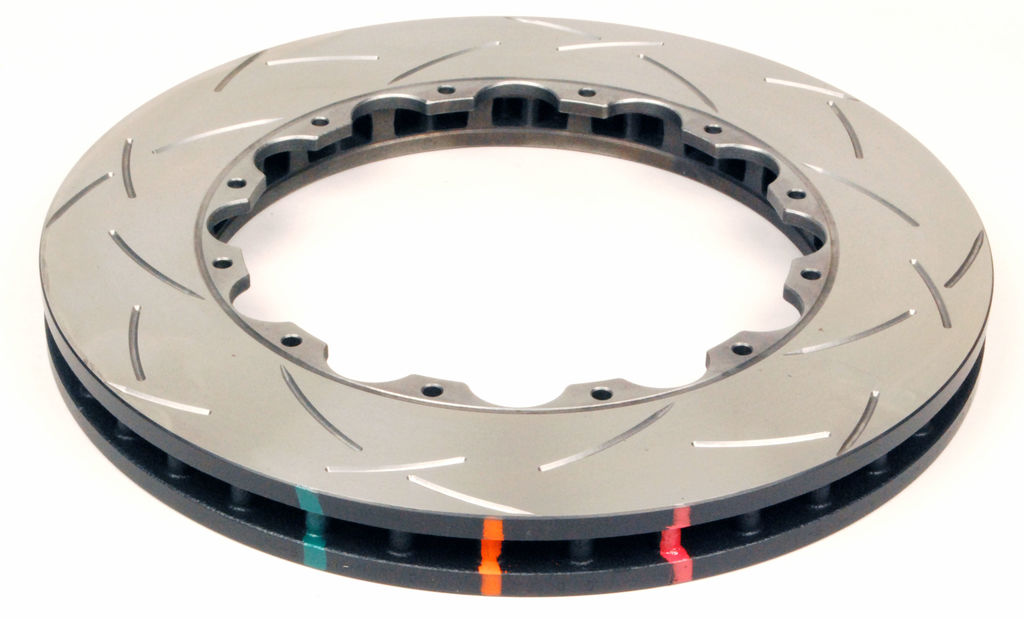

DBA DBA52770.1S - Disc Brake Rotor

DBA

DBA DBA52770.1S - Disc Brake Rotor

DBA DBA52770.1S - Disc Brake Rotor
Zoom image

DBA DBA52770.1S - Disc Brake Rotor

Part No: DBA52770.1S
DMWK-DBA52770.1S
  • This is a DBA 5000 2-piece rotor ring replacement, Order 2
  • High-carbon alloyed iron increases the rotor's heat capacity.
  • TSP heat treatment makes iron crack- and warp-resistant.
  • Slotted friction reduces glazing and improves pad bite.
  • Thermo-Graphic paint helps monitor heat.
  • Kangaroo Paw 144 diamond and teardrop pillar ventilation

Specs and ratings

Stopping Power




Noise Level




Performance Over Stock




Low
High

Product details


 Description

DBA 5000 Series flat discs are designed specifically to replace just the rotor ring in DBA and other popular two-piece rotor configurations. They are available in multiple slot, drill, and dimple designs and various vent designs as well.
When it comes to stopping power, the DBA 5000 Slotted T3 Brake Rotor Rings are in a class of their own. These innovative 2-piece brake rotors feature DBA's proprietary and internationally acclaimed T3 bi-directional slot design, which provides more accurate CNC machined tri-symmetrical slots for quieter, more precise, and smoother braking. The T3 slot also improves every brake stop's consistency and efficacy by increasing the dust and gas exit channels and allowing water and debris to escape quickly. As a result, you'll enjoy shorter stopping distances, reduced fade, and increased safety on the road. So if you're looking for the ultimate in brake performance, look no further than the DBA 5000 Slotted T3 Brake Rotor Rings.
DBA 5000 Series flat discs are designed specifically to replace just the rotor ring in DBA and other popular two-piece rotor configurations. They are available in multiple slot, drill, and dimple designs and various vent designs as well.
The DBA 5000 T3 Slotted Replacement Rotor Rings are designed for demanding road and race applications. These rotor rings have one crucial structural advancement over the 4000 Series: the Alumalite hats are constructed of 6061-T6 aeronautical grade aluminum and are integrated into the rotors. The Alumalite hat decreases unsprung weight, which results in improved suspension and handling performance. With this top-of-the-line design, the DBA 5000 T3 Slotted Replacement Rotor Rings provide better braking power, stability, and overall safety on the road.

 Technical Documents

 Specifications

Package
  • Brand
    DBADBA 2 Piece Brake Rotors
  • Part Number
    DBA52770.1S
  • UPC
    9316391404008
  • Height
    3.15 in
  • Width
    14.96 in
  • Length
    14.96 in
  • Weight
    25.01 lbs
Attributes
  • Recommended Use
    Performance
  • Driving Qualifiers
    Street & Track Events, Towing-Oversized Tires, Normal Commute, Performance Street, Commuter/OE Upgrade
  • Budget
    Medium
  • Rotor Style
    Slotted
  • Rotor Coating
    Coated
  • Rotor Treatment
    Non-Cryo Treated
  • Rotor Material
    High Carbon
  • Stopping Power
    5 / 5
  • Noise Level
    1 / 5
  • Performance Over Stock
    Racing
Details
  • Part Name
    Disc Brake Rotor
  • AAP Agricultural Equipment
    N
  • AAP Application Specific
    Y
  • AAP Car / Light Truck
    Y
  • AAP Engine Specific
    N
  • AAP Freight Class
    60
  • AAP Heavy Duty Truck
    N
  • AAP High Performance
    N
  • AAP Industrial / Off Highway Equipment
    N
  • AAP Marine
    N
  • AAP Medium Duty Truck
    N
  • AAP Motorcycle / ATV
    N
  • AAP Non-Vehicle Specific
    N
  • AAP Part Type ID
    221
  • AAP Personal Watercraft
    N
  • AAP Selling Package Quantity
    1
  • AAP Selling Package Quantity UOM
    EA
  • AAP Small Engine
    N
  • AAP Snowmobile
    N
  • AAP Transmission Specific
    N
  • Bolt Circle Diameter
    N/A
  • Bolt Hole Quantity
    N/A
  • Center Bore Diameter
    N/A
  • Discard Thickness
    32
  • Nominal Thickness
    34
  • Outside Diameter
    370
  • Position
    Front
  • Product Weight
    23.76
  • Title
    T3 5000 Repl Rotor
Manufacturer description
  • Manufacturer Label
    T3 5000 Series Replacement Slotted Rotor
