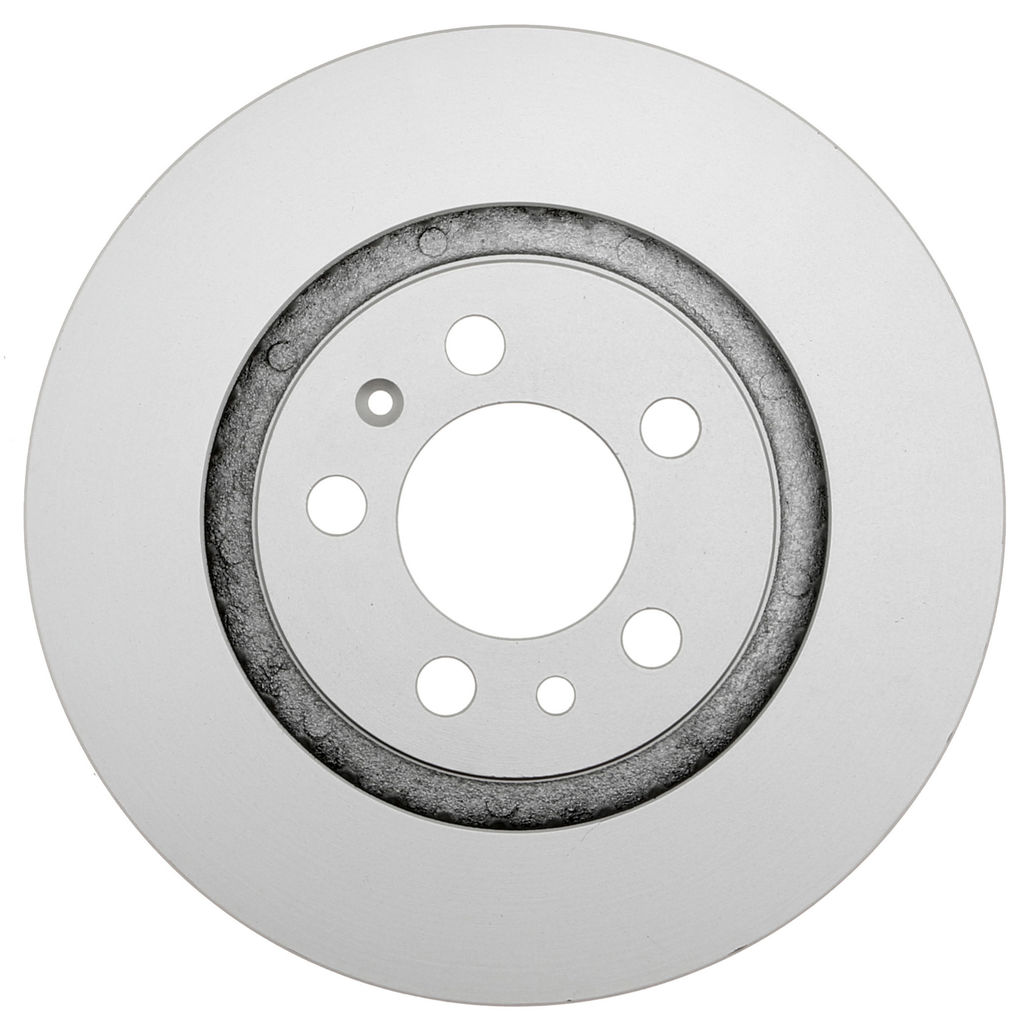

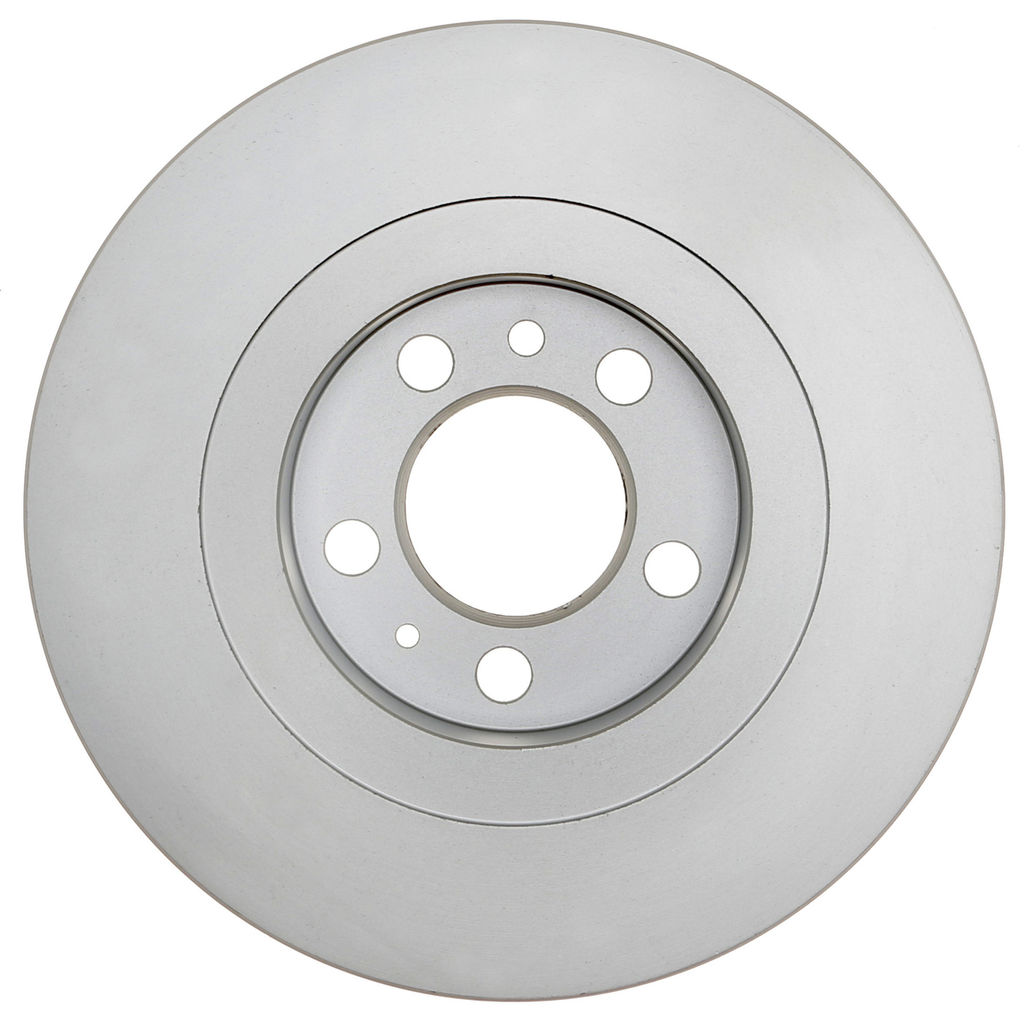

Centric 320.33054F - GCX Rotor with Full Coating, 280 mm

Previous image
Centric 320.33054F - GCX Rotor with Full Coating
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Centric 320.33054F - GCX Rotor with Full Coating, 280 mm

Part No: 320.33054F

Centric 320.33054F - GCX Rotor with Full Coating, 280 mm

HJCB-320.33054F
Vehicle Specific

Specs and ratings

Stopping Power:




Noise Level:




Performance Over Stock:




  • Comes with Elemental Protection™ GEOMET®
  • Superior corrosion and rust resistance
  • Using a double disc ground braking system
  • Fully Machined Hats
  • Symetric Vane Casting
  • Excellent metallurgy
  • Fits your vehicle seamlessly
Check All Vehicles this Part Fits

 Other Products that also fit your Vehicle

Product details

 Description

2 Coating Types Partially or Fully coated to match OE friction type; means the right rotor for your car; Road Ready From the box to your vehicle; no additional prep needed
2 Coating Types Partially or Fully coated to match OE friction type; means the right rotor for your car; Road Ready From the box to your vehicle; no additional prep needed

 Specifications

Package
  • Brand
    Centric,  Centric Brake Rotors
  • Part Number
    320.33054F
  • UPC
    889590728385
  • Height
    2. in
  • Width
    11. in
  • Length
    11. in
  • Weight
    13.1 lbs
Attributes
  • Recommended Use
    OE Replacement
  • Driving Qualifiers
    Normal Commute
  • Budget
    Low
  • Rotor Style
    Smooth-Plain
  • Rotor Coating
    Coated
  • Rotor Treatment
    Non-Cryo Treated
  • Rotor Material
    Cast Iron
  • Stopping Power
    3 / 5
  • Noise Level
    2 / 5
  • Performance Over Stock
    2 - Performance/Commuter
Details
  • Part Name
    Disc Brake Rotor
  • ABS Tone Ring Included
    No
  • Bearings Included
    No
  • Center Hole Diameter
    2.559 in
  • Disc Finish
    Fully Coated
  • Disc Mounting
    Floating
  • Discard Thickness
    0.748 in
  • Hat Finish
    Coated
  • Mounting Bolt Hole Circle Diameter
    100.000 mm
  • Nominal Thickness
    0.862 in
  • Outside Diameter
    279.700 mm
  • Overall Height
    1.445 in
  • Product Grade
    Premium
  • Solid Or Vented Type Rotor
    Vented
  • Stud/Lug Hole Diameter
    0.622 in
  • Stud/Lug Hole Quantity
    5
  • Surface Type
    Smooth
  • Vane Style
    Straight
Manufacturer description
  • Manufacturer Label
    Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2010, Volkswagen Beetle Base Front, Qty - 2, 280mm Front Disc
2010, Volkswagen Beetle Comfortline Front, Qty - 2, 280mm Front Disc
2010, Volkswagen Golf City Base, Canada Front, Qty - 2
2009, Volkswagen Beetle Base Front, Qty - 2, 280mm Front Disc
2009, Volkswagen Beetle Comfortline Front, Qty - 2, 280mm Front Disc
2009, Volkswagen Beetle Trendline Front, Qty - 2, 280mm Front Disc
2009, Volkswagen Golf City Base, Canada Front, Qty - 2
2009, Volkswagen Jetta City Base, Canada Front, Qty - 2
2008, Volkswagen Golf City Base, Canada Front, Qty - 2
2008, Volkswagen Jetta City Base, Canada Front, Qty - 2
2007, Volkswagen Golf City Base, Canada Front, Qty - 2
2007, Volkswagen Jetta City Base, Canada Front, Qty - 2
2006, Volkswagen Beetle 1.9, 1896, 116, L, 4 TDI Front, Qty - 2, To 12/06
2006, Volkswagen Golf 2.0, 1984, 121, L, 4 GL Front, Qty - 2
2006, Volkswagen Golf 2.0, 1984, 121, L, 4 GLS Front, Qty - 2
2006, Volkswagen Golf 1.9, 1896, 116, L, 4 GLS TDI Front, Qty - 2
2005, Volkswagen Beetle 2.0, 1984, 121, L, 4 GL Front, Qty - 2
2005, Volkswagen Beetle 2.0, 1984, 121, L, 4 GLS Front, Qty - 2
2005, Volkswagen Beetle 1.9, 1896, 116, L, 4 GLS TDI Front, Qty - 2
2005, Volkswagen Golf 2.0, 1984, 121, L, 4 GL Front, Qty - 2
2005, Volkswagen Golf 2.0, 1984, 121, L, 4 GLS Front, Qty - 2
2005, Volkswagen Golf 1.9, 1896, 116, L, 4 TDI Front, Qty - 2
2005, Volkswagen Jetta GL, Wagon, United States Front, Qty - 2, 280mm Front Disc
2005, Volkswagen Jetta GL TDI, Wagon, United States Front, Qty - 2, 280mm Front Disc
2005, Volkswagen Jetta GLS, Wagon, United States Front, Qty - 2, 280mm Front Disc
2005, Volkswagen Jetta GLS TDI, Wagon, United States Front, Qty - 2, 280mm Front Disc
2004, Volkswagen Beetle 2.0, 1984, 121, L, 4 GL Front, Qty - 2
2004, Volkswagen Beetle 1.9, 1896, 116, L, 4 GL Front, Qty - 2
2004, Volkswagen Beetle 2.0, 1984, 121, L, 4 GLS Front, Qty - 2
2004, Volkswagen Beetle 1.9, 1896, 116, L, 4 GLS Front, Qty - 2
2004, Volkswagen Golf 2.0, 1984, 121, L, 4 GL Front, Qty - 2
2004, Volkswagen Golf 1.9, 1896, 116, L, 4 GL TDI Front, Qty - 2
2004, Volkswagen Golf 2.0, 1984, 121, L, 4 GLS Front, Qty - 2
2004, Volkswagen Golf 1.9, 1896, 116, L, 4 GLS TDI Front, Qty - 2
2004, Volkswagen Jetta 2.0, 1984, 121, L, 4 GL, Sedan, United States Front, Qty - 2, 280mm Front Disc
2004, Volkswagen Jetta GL, Wagon, United States Front, Qty - 2, 280mm Front Disc
2004, Volkswagen Jetta 2.0, 1984, 121, L, 4 GLS, Sedan, United States Front, Qty - 2, 280mm Front Disc
2004, Volkswagen Jetta GLS, Wagon, United States Front, Qty - 2, 280mm Front Disc
2004, Volkswagen Jetta 1.9, 1896, 116, L, 4 TDI, Sedan, United States Front, Qty - 2, 280mm Front Disc
2004, Volkswagen Jetta TDI, Wagon, United States Front, Qty - 2, 280mm Front Disc
2003, Volkswagen Beetle 2.0, 1984, 121, L, 4 GL Front, Qty - 2
2003, Volkswagen Beetle 1.9, 1896, 116, L, 4 GL Front, Qty - 2
2003, Volkswagen Beetle 2.0, 1984, 121, L, 4 GLS Front, Qty - 2
2003, Volkswagen Beetle 1.9, 1896, 116, L, 4 GLS Front, Qty - 2
2003, Volkswagen Golf 2.0, 1984, 121, L, 4 GL Front, Qty - 2
2003, Volkswagen Golf 1.9, 1896, 116, L, 4 GL Front, Qty - 2
2003, Volkswagen Golf 2.0, 1984, 121, L, 4 GLS Front, Qty - 2
2003, Volkswagen Golf 1.9, 1896, 116, L, 4 GLS Front, Qty - 2
2003, Volkswagen Jetta 2.0, 1984, 121, L, 4 GL, Sedan, United States Front, Qty - 2, 280mm Front Disc
2003, Volkswagen Jetta GL, Wagon, United States Front, Qty - 2, 280mm Front Disc
2003, Volkswagen Jetta 2.0, 1984, 121, L, 4 GLS, Sedan, United States Front, Qty - 2, 280mm Front Disc
2003, Volkswagen Jetta GLS, Wagon, United States Front, Qty - 2, 280mm Front Disc
2003, Volkswagen Jetta 1.9, 1896, 116, L, 4 TDI, Sedan, United States Front, Qty - 2, 280mm Front Disc
2003, Volkswagen Jetta TDI, Wagon, United States Front, Qty - 2, 280mm Front Disc
2003, Volkswagen Jetta Wolfsburg Edition, Wagon, United States Front, Qty - 2, 280mm Front Disc
2002, Volkswagen Beetle 2.0, 1984, 121, L, 4 GL Front, Qty - 2
2002, Volkswagen Beetle 1.9, 1896, 116, L, 4 GL Front, Qty - 2
2002, Volkswagen Beetle 2.0, 1984, 121, L, 4 GLS Front, Qty - 2
2002, Volkswagen Beetle 1.9, 1896, 116, L, 4 GLS Front, Qty - 2
2002, Volkswagen Beetle 2.0, 1984, 121, L, 4 Sport Front, Qty - 2
2002, Volkswagen Beetle 1.9, 1896, 116, L, 4 Sport Front, Qty - 2
2002, Volkswagen Golf 2.0, 1984, 121, L, 4 GL Front, Qty - 2
2002, Volkswagen Golf 1.9, 1896, 116, L, 4 GL Front, Qty - 2
2002, Volkswagen Golf 2.0, 1984, 121, L, 4 GLS Front, Qty - 2
2002, Volkswagen Golf 1.9, 1896, 116, L, 4 GLS Front, Qty - 2
2002, Volkswagen Jetta 2.0, 1984, 121, L, 4 GL, Sedan Front, Qty - 2, 280mm Front Disc
2002, Volkswagen Jetta GL, Wagon, United States Front, Qty - 2, 280mm Front Disc
2002, Volkswagen Jetta 2.0, 1984, 121, L, 4 GLS, Sedan Front, Qty - 2, 280mm Front Disc
2002, Volkswagen Jetta GLS, Wagon, United States Front, Qty - 2, 280mm Front Disc
2002, Volkswagen Jetta GLX, Wagon, United States Front, Qty - 2, 280mm Front Disc
2002, Volkswagen Jetta 1.9, 1896, 116, L, 4 TDI, Sedan Front, Qty - 2, 280mm Front Disc
2002, Volkswagen Jetta TDI, Wagon, United States Front, Qty - 2, 280mm Front Disc
2001, Volkswagen Beetle 2.0, 1984, 121, L, 4 GL Front, Qty - 2
2001, Volkswagen Beetle 1.9, 1896, 116, L, 4 GL Front, Qty - 2
2001, Volkswagen Beetle 2.0, 1984, 121, L, 4 GLS Front, Qty - 2
2001, Volkswagen Beetle 1.9, 1896, 116, L, 4 GLS Front, Qty - 2
2001, Volkswagen Beetle 2.0, 1984, 121, L, 4 Sport Front, Qty - 2
2001, Volkswagen Beetle 1.9, 1896, 116, L, 4 Sport Front, Qty - 2
2001, Volkswagen Golf GL Front, Qty - 2, Fr Ch# 1J-YW-238 581
2001, Volkswagen Golf Naturally Aspirated GLS Front, Qty - 2, Fr Ch# 1J-YW-238 581
2001, Volkswagen Jetta 2.0, 1984, 121, L, 4 GL, Sedan Front, Qty - 2, 280mm Front Disc;Fr Ch# 9M-Y-012-500
2001, Volkswagen Jetta 2.0, 1984, 121, L, 4 GLS, Sedan Front, Qty - 2, 280mm Front Disc;Fr Ch# 9M-Y-012-500
2001, Volkswagen Jetta 1.9, 1896, 116, L, 4 TDI Front, Qty - 2, 280mm Front Disc;Fr Ch# 9M-Y-012-500
2000, Volkswagen Beetle 2.0, 1984, 121, L, 4 GL Front, Qty - 2
2000, Volkswagen Beetle 1.9, 1896, 116, L, 4 GL Front, Qty - 2
2000, Volkswagen Beetle 2.0, 1984, 121, L, 4 GLS Front, Qty - 2
2000, Volkswagen Beetle 1.9, 1896, 116, L, 4 GLS Front, Qty - 2
2000, Volkswagen Golf GL Front, Qty - 2, Fr Ch# 1J-YW-238 581
2000, Volkswagen Golf Naturally Aspirated GLS Front, Qty - 2, Fr Ch# 1J-YW-238 581
2000, Volkswagen Jetta 2.0, 1984, 121, L, 4 GL Front, Qty - 2, 280mm Front Disc;Fr Ch# 9M-Y-012-500
2000, Volkswagen Jetta 2.0, 1984, 121, L, 4 GLS Front, Qty - 2, 280mm Front Disc;Fr Ch# 9M-Y-012-500
2000, Volkswagen Jetta 1.9, 1896, 116, L, 4 TDI Front, Qty - 2, 280mm Front Disc;Fr Ch# 9M-Y-012-500
1999, Volkswagen Beetle 2.0, 1984, 121, L, 4 GL Front, Qty - 2
1999, Volkswagen Beetle 1.9, 1896, 116, L, 4 GL Front, Qty - 2
1999, Volkswagen Beetle 2.0, 1984, 121, L, 4 GLS Front, Qty - 2
1999, Volkswagen Beetle 1.9, 1896, 116, L, 4 GLS Front, Qty - 2
1999, Volkswagen Golf GL Front, Qty - 2
1999, Volkswagen Golf GLS Front, Qty - 2
1999, Volkswagen Jetta 2.0, 1984, 121, L, 4 GL, United States Front, Qty - 2, 280mm Front Disc;Fr 10/98
1999, Volkswagen Jetta 2.0, 1984, 121, L, 4 GLS, United States Front, Qty - 2, 280mm Front Disc;Fr 10/98
1999, Volkswagen Jetta 1.9, 1896, 116, L, 4 TDI, United States Front, Qty - 2, 280mm Front Disc;Fr 10/98
1999, Volkswagen Jetta 2.0, 1984, 121, L, 4 Wolfsburg Edition, United States Front, Qty - 2, 280mm Front Disc;Fr 10/98
1998, Volkswagen Beetle Base Front, Qty - 2
1998, Volkswagen Beetle TDI Front, Qty - 2
Items: 1–100 of 718
